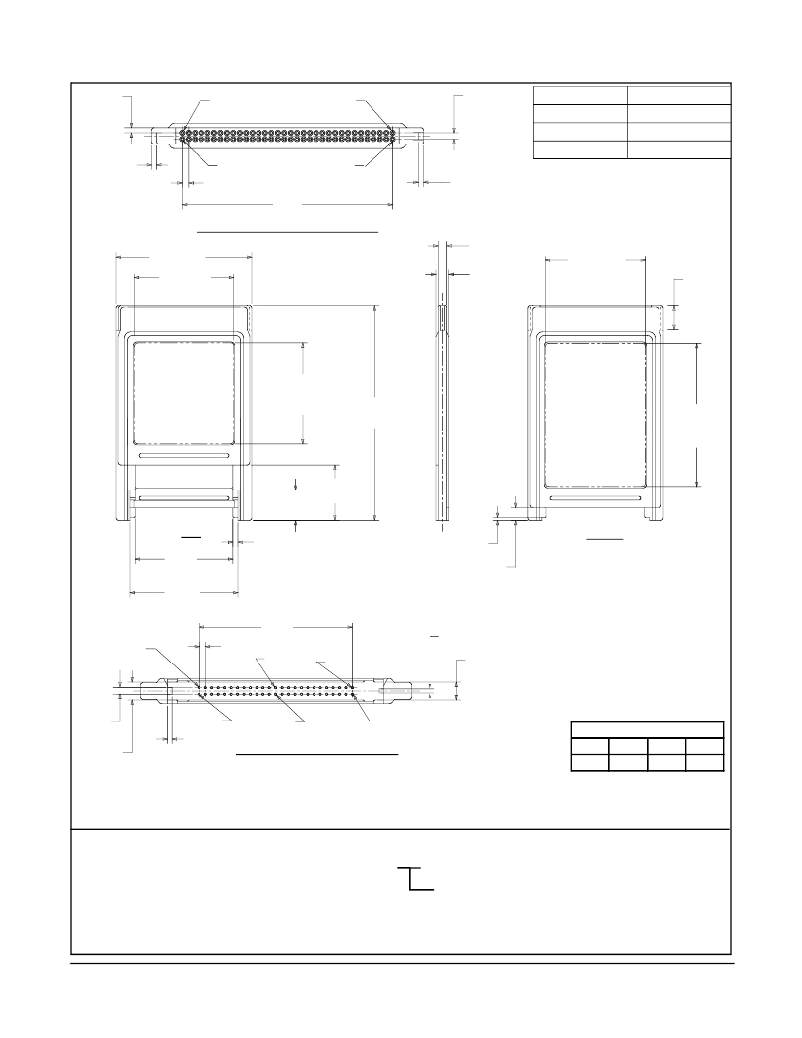

3M ? CF Card to PC Card Adapter

CompactFlash ? Type I to PCMCIA Type II Adapter

468 Series

1.0

[ .039 ]

#35

#68

1.6

[ .063 ]

Pin Number

25, 26

Pin Length ± .010

3.50 [ .138 ]

All other pins

1, 13, 38, 50

4.25 [ .167 ]

5.00 [ .197 ]

1.0

[ .039 ]

#1

1.27 Typ

#34

1.0

[ .050 ]

41.91

[ .039 ]

[ 1.650 ]

PC Card Socket Interface View 2:1

54.0 ± 0.1

[ 2.13 ]

39.5 ± 0.1

[ 1.56 ]

3.3

[ .130 ]

5.0 Max

[ .197 ]

39.5 ± 0.1

[ 1.56 ]

for Label

2X 10.0

[ .39 ]

for Label

40.1 ± 0.1

[ 1.58 ]

for Label

85.6 ± 0.2

[ 3.37 ]

57.1 ± 0.1

[ 2.25 ]

for Label

22.0

12.0

[ .47 ]

[ .87 ]

Top

39.03

[ 1.55 ]

2X 2.0

[ .08 ]

1.1

[ .04 ]

5.0

[ .197 ]

Bottom

43.03

[ 1.69 ]

#1

1.27 Typ

30.48

[ 1.200 ]

0.79

[ .031 ]

( See Note 1 )

[ .050 ]

#13

#25

3.5

[ .138 ]

mm

1.40

[ .055 ]

3.5

[ .138 ]

Note:

#26

0.89

[ .035 ]

#38 #50

CF Card Pin Interface View 2:1

[inch]

Tolerance Unless Noted

0 0.0 0.00

mm ±3 ±0.3 ±0.13

[ ] Dimensions for Reference Only

1.See table for pin lengths of 50 position header.

Ordering Information

20468-0000-XX (RIA E1 & C1 apply)

Label

00 = No Label

11 = 3M Label

TS-0699- C

Sheet 2 of 2

3M

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
